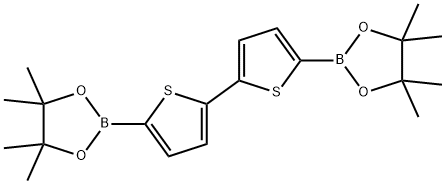

2,2'-Bithiophene-5,5'-diboronic acid bis(pinacol) ester Structure

2,2'-Bithiophene-5,5'-diboronic acid bis(pinacol) ester

Chemical Properties

Melting point 208-212 °C
Boiling point 530.5±50.0 °C(Predicted)
Density  1.16±0.1 g/cm3(Predicted)
storage temp.  Keep in dark place,Sealed in dry,Room Temperature
solubility  Benzene (Slightly), Chloroform (Slightly), DMSO (Slightly), Methanol (Slightly,
form  Solid
color  White to Off-White
Stability Moisture Sensitive
InChI 1S/C20H28B2O4S2/c1-17(2)18(3,4)24-21(23-17)15-11-9-13(27-15)14-10-12-16(28-14)22-25-19(5,6)20(7,8)26-22/h9-12H,1-8H3
InChIKey XWWXVHGWYCXJCJ-UHFFFAOYSA-N
SMILES CC1(C)OB(OC1(C)C)c2ccc(s2)-c3ccc(s3)B4OC(C)(C)C(C)(C)O4

Safety Information

WGK Germany  3
HS Code  2934999090
Storage Class 13 - Non Combustible Solids
