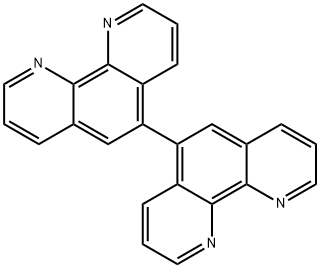

5,5'-Bi-1,10-phenanthroline
- Product Name5,5'-Bi-1,10-phenanthroline
- CAS96761-79-4
- MFC24H14N4
- MW358.39
- EINECS
- MOL File96761-79-4.mol
Chemical Properties
| Boiling point | 581.6±45.0 °C(Predicted) |
| Density | 1.357±0.06 g/cm3(Predicted) |
| storage temp. | Store at room temperature |
| pka | 4.49±0.10(Predicted) |
| Appearance | Brown to dark brown Solid |
| InChI | InChI=1S/C24H14N4/c1-5-15-13-19(17-7-3-11-27-23(17)21(15)25-9-1)20-14-16-6-2-10-26-22(16)24-18(20)8-4-12-28-24/h1-14H |
| InChIKey | MBMOTAGBXPKECR-UHFFFAOYSA-N |
| SMILES | N1C2C(=C(C3C=C4C(=C5C=3C=CC=N5)N=CC=C4)C=C3C=2N=CC=C3)C=CC=1 |
