Preparation Method and Condensation reaction of 4-tert-Butoxystyrene

4-tert-Butoxystyrene is an electron-rich styrene compound, existing as a colorless to pale yellow liquid under ambient temperature and pressure. It exhibits extremely high chemical reactivity, is insoluble in water but miscible with common organic solvents. In the field of chemical synthesis, 4-tert-Butoxystyrene is often used as a monomer for the synthesis of polystyrene, and research reports indicate that it can be employed via living anionic polymerization to prepare 4-tert-butoxystyrene-styrene copolymers.

Preparation Method

The corresponding benzaldehyde derivatives, taken in a quantity of 10 mmol, are combined within a round-bottom flask alongside methyltriphenylphosphonium bromide—utilized as a stoichiometric reagent in 1.5 equivalents, corresponding to a measured mass of 5.35 grams—and the organic base DBU, or 1,8-diazabicyclo[5.4.0]undec-7-ene, which is employed in a 2.5 equivalent amount, equating to 3.80 grams, after which 50 milliliters of dichloromethane are introduced as the primary reaction solvent. The resulting heterogeneous mixture is subsequently subjected to continuous stirring and maintained at an elevated temperature of 55°C for a period of 12 hours, during which the advancement of the reaction is periodically assessed via thin-layer chromatography (TLC) analysis to confirm consumption of the starting materials. Upon verification of reaction completion, the crude mixture is concentrated under reduced pressure using a rotary evaporator to remove the volatile solvent, ultimately yielding a residue that is then subjected to purification through column chromatography on silica gel to isolate the desired olefinic product 4-tert-Butoxystyrene in a pure form. [1]

Polymerization Methods

Method 1

Researchers utilized living anionic polymerization with tetrahydrofuran (THF)/cyclohexane (CYX) as the solvent and n-butyllithium as the initiator to synthesize 4-tert-butoxystyrene-styrene copolymers using styrene and 4-tert-Butoxystyrene as monomers. The structure and properties of the copolymers were characterized. The results indicated that at -78°C with THF as the solvent, the polydispersity index (PDI) of the 4-tert-butoxystyrene-styrene copolymer was 1.23, and 4-tert-Butoxystyrene exhibited higher reactivity than styrene during copolymerization. Using a THF/CYX solvent with a mass ratio of 5:5 at -30°C, the PDI of the copolymer was 1.10, showing a narrower molecular weight distribution and lower polymerization costs. The glass transition temperature (Tg) of the 4-tert-butoxystyrene-styrene copolymers was lower than that of the 4-tert-butoxystyrene homopolymer, and higher 4-tert-Butoxystyrene content in the copolymer led to a higher Tg. [2]

Method 2

To a 25 mL round-bottomed flask equipped with a stirrer were added 2-(dodecylthiocarbonothioylthio)-2-methylpropionic acid (225.0 mg), 2,2'-azobis(2-methylpropionitrile) (30.0 mg, 0.183 mmol), 4-tert-Butoxystyrene (5.00 g) and THF (5.0 mL). The solution was then subjected to three freeze‑pump‑thaw cycles, after which the flask was back‑filled with nitrogen. The flask was placed at 65°C for 12 hours. The resulting mixture was diluted with 5 mL of THF, and the polymer was precipitated three times into cold methanol. The isolated solid was subsequently dried under vacuum at 40°C overnight. [3]

Condensation reaction

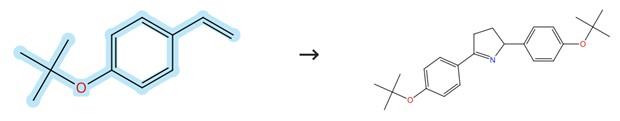

Figure1: Picture of 4-tert-Butoxystyrene

To an oven-dried, undivided three-necked bottle (20 mL) equipped with a graphite rod anode (φ = 6 mm, 90 mm) and a platinum plate cathode (10 mm × 10 mm × 0.2 mm), a stir bar and nBu₄NClO₄ (0.25 mmol) were added. Under an argon atmosphere, DCE (8.0 mL), HFIP (1.0 mL), TMSN₃ (1.5 equiv.), and 4-tert-Butoxystyrene (0.5 mmol, 1 equiv.) were injected successively into the bottle via syringes. The reaction mixture was stirred and electrolyzed at a constant current of 5 mA (j = 1.8 mA/cm²) at room temperature for 12 h (4.5 F/mol). After completion, the solvent was removed under reduced pressure. The residue was purified by flash column chromatography on silica gel using a mixture of petroleum ether/ethyl acetate (30:1) as the eluent. [4]

Industrial Applications

4-tert-Butoxystyrene is commonly used as an organic synthetic intermediate and a basic chemical raw material in the production of daily chemicals. In the field of organic chemistry research, 4-tert-Butoxystyrene can be applied to the preparation of functionalized phenylethane derivatives due to the high chemical conversion activity of its alkene unit. Owing to its distinctive sweet aroma, this compound is also employed in the industrial production of daily chemical products such as soaps and shampoos.

References

[1] Luo, Hui; et al, Electrochemical synthesis of tetralones utilizing platinum nanoparticles as the anode material, Green Chemistry (2025), 27(43), 13644-13650.

[2] Lü, H.; Zhao, Z.; Wang, J.; et al. Synthesis of 4-tert-Butoxystyrene–Styrene Copolymer. Synthetic Resins and Plastics, 2023, 40, 7–10.

[3] Chai, X.; et al. Fluorine-Containing Nano-Objects with the Same Compositions but Different Segment Distributions: Synthesis, Characterization and Comparison. Polymer Chemistry, 2022, 13, 6293–6301.

[4] Song, B.; et al. Electrochemical [2+2+1] Dimerization Annulation of Styrenes and TMSN3 via Schmidt Rearrangement: Direct Access to 1-Pyrrolines. Organic Letters, 2025, 27, 9489–9494.
