Synthesis and Condensation reaction of (R)-(-)-3-Chloro-1,2-propanediol

(R)-(-)-3-Chloro-1,2-propanediol is a chiral diol compound commonly used as a chiral organic synthesis intermediate and a fundamental raw material in organic chemical production. It has a wide range of applications in the pharmaceutical and chemical manufacturing fields. In addition, due to its structure containing a chiral vicinal diol unit, (R)-(-)-3-Chloro-1,2-propanediol can also be employed in the preparation of chiral acetal derivatives.

Chemical Synthesis

Figure1: Chemical Synthesis of (R)-(-)-3-Chloro-1,2-propanediol

A 250 mL flask equipped with a stirrer bar and a thermometer was charged with the (R,R)-Co(salen) complex (1.47 g), which was then dissolved in THF (13 mL). The resulting solution was cooled to 4 °C prior to the addition of (±)-epichlorohydrin (8.45 mL, 108.0 mmol). Over a period of 1.5 hours, H₂O (901 μL, 50 mmol) was introduced into the mixture using a syringe pump, and the reaction was allowed to stir at 4 °C for a total of 24 hours. Upon completion, the mixture was cooled to -78 °C and subsequently diluted with CH₂Cl₂ (250 mL) before being transferred to a separating funnel. Following the addition of H₂O (75 mL), the aqueous layer was separated and further extracted with CH₂Cl₂ (2 × 15 mL). The remaining catalyst was removed by filtration, and the combined filtrate was concentrated under reduced pressure to afford the desired product (R)-(-)-3-Chloro-1,2-propanediol. [1]

Condensation reaction

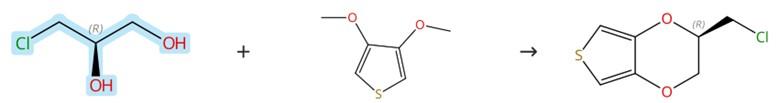

Figure2: Condensation reaction of (R)-(-)-3-Chloro-1,2-propanediol

A 500 mL two-neck round-bottom flask equipped with a reflux condenser and an argon inlet was charged with 3,4-dimethoxythiophene (15.0 g, 104.02 mmol), anhydrous toluene (300 mL), (R)-(-)-3-Chloro-1,2-propanediol (23.57 g, 231.24 mmol), and p-toluenesulfonic acid (1.79 g, 10.40 mmol). The reaction mixture was stirred at 90 °C for 24 h, after which an additional portion of (R)-3-chloro-1,2-propanediol (23.57 g) was added, and stirring was continued at 90 °C for another 3 h. The mixture was then allowed to cool to room temperature, and the solvent was removed under vacuum. The crude residue was treated with 10% aqueous sodium bicarbonate solution (200 mL) and extracted with dichloromethane (3 × 200 mL). The combined organic phases were washed with water (2 × 200 mL), dried over anhydrous sodium sulfate, filtered, and concentrated under reduced pressure. The resulting filtrate was purified by column chromatography using a petroleum ether/dichloromethane mixture (50:50, v/v) to afford the desired product. [2]

Biosynthesis

A bacterium capable of assimilating (S)-3-chloro-1,2-propanediol [monochlorohydrin (MCH)] was isolated from soil via enrichment culture and identified as Pseudomonas sp. through taxonomic studies. The strain grew in a medium containing racemic MCH as the carbon source and stereoselectively degraded the (S)-enantiomer, resulting in the release of chloride ions. The residual isomer was recovered as (R)-(-)-3-Chloro-1,2-propanediol with 99.5% enantiomeric excess (ee), achieving a final yield of 36% from the racemate using this bacterial strain. Subsequently, highly optically active (R)-glycidol (99.3% ee) was synthesized from the obtained (R)-(-)-3-Chloro-1,2-propanediol through reaction in alkaline solution. Additionally, cell-free extracts of the bacterium exhibited both dehalogenating and epoxide-opening activities, converting various halohydrins to the corresponding epoxides and epoxides to the corresponding diols, respectively. [3]

Asymmetric synthesis of L-carnitine

A practical chemical synthesis of L-carnitine (1) has been developed using (R)-(-)-3-Chloro-1,2-propanediol as a chiral starting material, which is a major by-product from the (R,R)-Salen Co(III)-catalyzed hydrolytic kinetic resolution (HKR) of epichlorohydrin. This by-product was efficiently converted into the key cyclic sulfite intermediate ((R)-5), enabling an asymmetric synthesis of the bioactive compound while demonstrating the value of utilizing organic by-products in chemical processes. The conventional synthesis of L-carnitine begins with (S)-epichlorohydrin, which can be produced on a large scale via Salen Co(III)-catalyzed hydrolytic kinetic resolution of racemic epichlorohydrin (Scheme 1). However, this process simultaneously generates a significant amount of (R)-(-)-3-Chloro-1,2-propanediol as a by-product. According to toxicological studies, (R)-(-)-3-Chloro-1,2-propanediol is genotoxic in humans and exhibits anti-fertility effects in male rats, and its discharge poses serious environmental risks. As can be seen, this approach suffers from low atom economy and is not environmentally benign. These drawbacks led us to investigate an alternative synthetic route to L-carnitine utilizing (R)-3-chloro-1,2-propanediol as the starting material. [4]

Reference

[1] Raghavan, Sadagopan ; et al, A Stereoselective Synthesis of the Carbon Backbone of Phoslactomycin B, European Journal of Organic Chemistry (2017), 2017(20), 2981-2997.

[2] Chhatre, Shrirang S. ; et al, Influence of Controlled Chirality on the Crystallization of Maleimide-Functionalized 3,4-Ethylenedioxythiophene (EDOT-MA) Monomers, ACS Omega (2024), 9(12), 13655-13665.

[3] Suzuki T, Kasai N, Yamamoto R, et al. Production of highly optically active (R)-3-chloro-1, 2-propanediol using a bacterium assimilating the (S)-isomer[J]. Applied microbiology and biotechnology, 1993, 40(2): 273-278.

[4] Li X Q, Yang Y X, Wang W L, et al. Asymmetric synthesis of L-carnitine from (R)-3-chloro-1, 2-propanediol[J]. Chinese Chemical Letters, 2011, 22(7): 765-767.
